Veethree

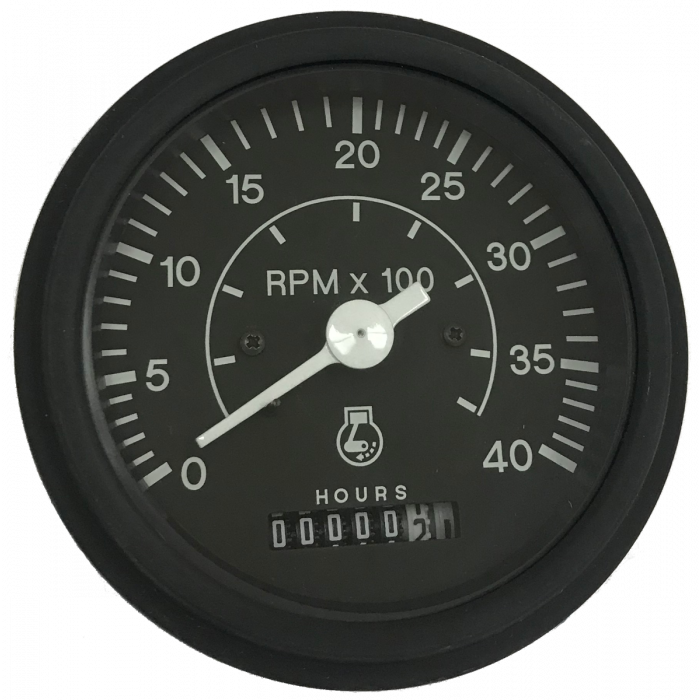

037153 Veethree Tachometer 0-4000 RPM w/ Mag. Pick-up & Analog Hour Meter
Product short description:
Price: $147.00
Free same day shipping
Product no: 37153
Product info: 037153 Veethree Tachometer 0-4000 RPM w/ Mag. Pick-up & Analog Hour Meter
-
Product long description:
The 037153 Veethree Tachometer is a versatile instrument that combines a tachometer and an analog hour meter in one unit. It accurately measures engine RPM (revolutions per minute) and records the running time of your equipment. The tachometer features a 0-4000 RPM range and comes with a magnetic pick-up for easy installation. The analog hour meter provides a clear indication of the total operating hours, allowing you to track maintenance intervals effectively. With its reliable performance and durable construction, the 037153 Veethree Tachometer is a valuable tool for monitoring and maintaining equipment performance. Upgrade your instrumentation with this versatile tachometer and hour meter combo.
-
Product specifications
037153 Veethree Tachometer 0-4000 RPM w/ Mag. Pick-up & Analog Hour Meter
Features and Specifications:
- Range: 0-4000 RPM
- Volt: 12 VDC
- Sender: Magnetic Pick-Up
- Size: 3-3/8″
- Operating Temperature Range: -40°F to + 158°F (-40°C to + 70°C)
- Humidity: Remains within initial accuracy specification in 5% relative humidity at 100°F (37.8C) for 48 hours
- Overvoltage: Withstands a maximum of 18 VDC for 12 VDC nominal
- Salt Spray: Conforms to ASTM 117 after 48 hours of salt spray exposure
- Shock Withstand: Remains within initial accuracy specification up to 50 G’s, half sine 9 milliseconds durations, 25 shocks of equal magnitude on each of three axes
- Vibration Withstand: Remains within initial accuracy specification at .060″ double amplitude vibration from 10-55-10 Hz for one minute periods over two hours in each of three axes (six hours total)
