Brigade
4530 BS-8000 PROGRAMMABLE BACKSENSE OBSTACLE DETECTION SYSTEM
Price: $1,871.00
Free same day shipping
Product info: 4530 BS-8000 Programmable Backsense Obstacle Detection System
We ship to:
-
United States of America
-
Canada
-
Mexico
-
Product information

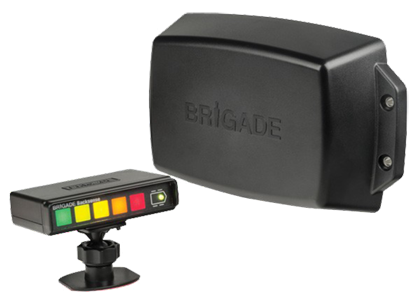

4530 BS-8000 Programmable Backsense Obstacle Detection System
- Rugged design for harsh environmental conditions
- Frequency modulated continuous wave (FMCW) radar technology
- Effectively detects stationary, moving and multiple objects
- 5 stage audible and visual distance warning display
- Resistant to water, moisture, dust, vibration, heat, cold, mud and glare
-
Product specifications
Programmable Backsence® Objest Detection System
Features:
- BS-8000 – Programmable detection range
- Includes: Sensor, AV display, 9m /29.5′ cable
- 12-24Vdc
- Detection length: 3 to 30m / 10 to 98′
- Detection width: 2 to 10m / 6.5 to 33′
- Sensor size (WxHxD) 217 x 129 x 50mm / 8.5 x 5 x 1.9 inches
- IP69K sensor
- 1 activation input
- 1 trigger output
- Programmable: Detection area, Blind zones – system ignores fixed objects, Trigger activation, and Buzzer
- Current: 0.8 Amps
- Power consumption: 8 Watts
- Mechanical shock: 100G
- Mechanical vibration: 8.3G
- Operating temperature: -40 to +85°C / -40 to +185°F
- CE marked
- EMC approved: E
- BS EN 13309: 2010
- ISO13766: 2006
