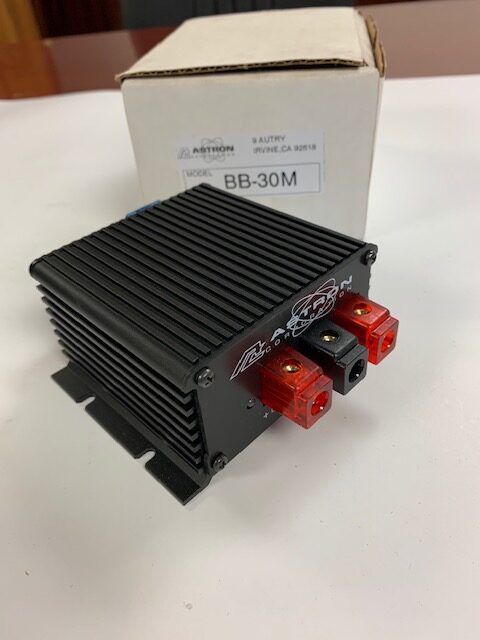

BB-30M ASTRON POWER SUPPLY

BB-30M ASTRON POWER SUPPLY

• Automatically switches to battery source upon power supply failure

• Built-in battery charger for standard 12 and 24V batteries (13.8 and 27.6VDC)

• Battery and power supply sources may combine during peak power events

• Built-in fuse protection on battery charging and discharging

• Front panel 3 way LED indicator for Battery Charged, Battery Charging, and Battery Back-up

Specifications:

• RoHS Compliant

• Input Voltage: 13.8VDC or 27.6VDC

• Output Voltage:

  • 13.4VDC max at 13.8VDC Operation

  • 27.2VDC max at 27.6VDC Operation

• Output Current: 30A Max continuous

• Charging Current: 3.6A

• Temperature

  • Operating: -25 to 50°C​

  • Storage:    -40 to 85°C

  • Over temperature Shutdown at 60°C

• Dimensions: 3.8 x 4.5 x 1.93″

• Weight: 1.1 lbs
