Brigade

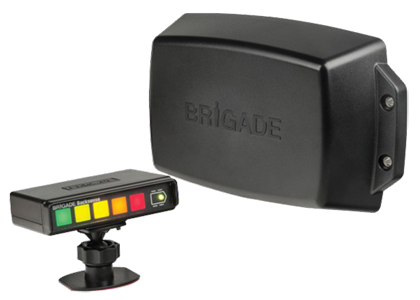

BS-7030 FIXED BACKSENSE OBSTACLE DETECTION SYSTEM
Price: $1,359.00
Free same day shipping

Product info: BS-7030 FIXED BACKSENSE OBSTACLE DETECTION SYSTEM
We ship to:
-
United States of America
-
Canada
-
Mexico
-
Product information
BS-7030 FIXED BACKSENSE OBSTACLE DETECTION SYSTEM HAS A RUGGED DESIGN FOR HARSH ENVIRONMENTAL CONDITIONS
-
Product specifications
Fixed Backsense® Obstacle Detection
- BS-7030 – 3m/10′ detection range, 2.5m/8′ width
- Includes: Sensor, AV display, 9m / 29.5′ cable
- 12-24Vdc
- Rugged design for harsh environmental conditions
- Sensor size (WxHxD) 217 x 129 x 50mm / 8.5 x 5 x 1.9 inches
- IP69K sensor
- 3 year warranty
- Frequency modulated continuous wave (FMCW) radar technology
- Effectively detects stationary, moving and multiple objects
- 1 activation input
- 1 trigger output
- 5 stage audible and visual distance warning display
- Resistant to water, moisture, dust, vibration, heat, cold, mud and glare
- Current: 0.8 Amps
- Power consumption: 8 Watts
- Mechanical shock: 100G
- Mechanical vibration: 8.3G
- Operating temperature: -40 to +85°C / -40 to +185°F
- CE marked
- EMC approved: E
- BS EN 13309: 2010
- ISO13766: 2006
