ProSense

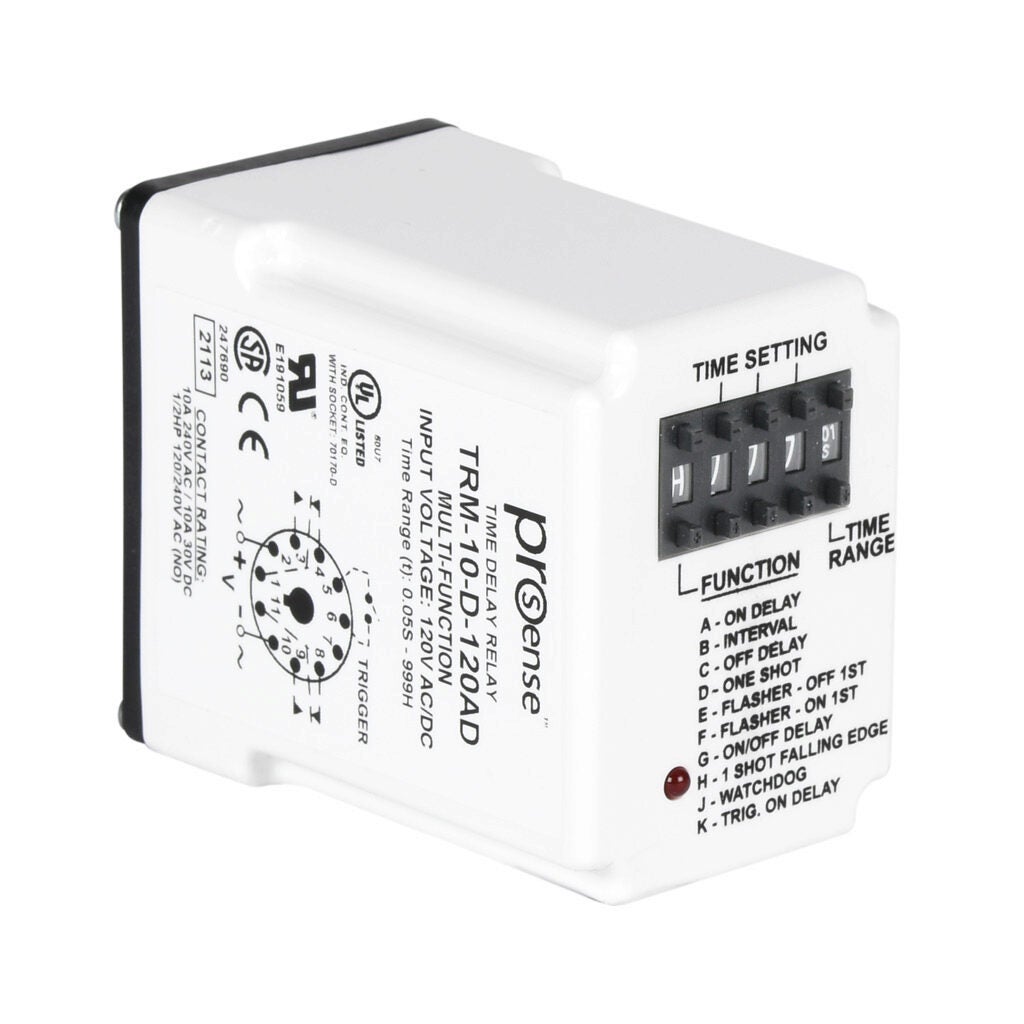

TRM-10-D-120AD ProSense Multi-Mode Relay Timer
Product short description:
Price: $102.00
Free same day shipping
Product no: TRM-10-D-120AD
Product info: TRM-10-D-120AD ProSense Multi-Mode Relay Timer
-
Product long description:
TRM-10-D-120AD ProSense Multi-Mode Relay Timer
0.05 seconds to 999 hours selectable timing range, 120 VAC/VDC operating voltage, 10A contact rating, (1) DPDT timed relay output(s), socket mount, 11-pin. Requires Macromatic 70170-D relay socket.
-
Product specifications
TRM-10-D-120AD ProSense Multi-Mode Relay Timer
Features and Specifications:
- Brand: ProSense
- Item: Relay timer
- Timer Type: Multi-mode
- Indicator: LED
- Timing Range: 0.05 seconds to 999 hours selectable
- Operating Voltage: 120 VAC-VDC
- Timer Output Type(s): (1) DPDT timed relay
- Timer Function(s):
-
- on-delay
- triggered on-delay
- off-delay
- on/off delay
- interval
- single-shot
- falling edge (single shot)
- on-flasher
- off-flasher
- watchdog
-
- Contact Rating: 10A
- Mounting: Socket
- Connector Type: 11-pin
- Requires: Macromatic 70170-D relay socket
