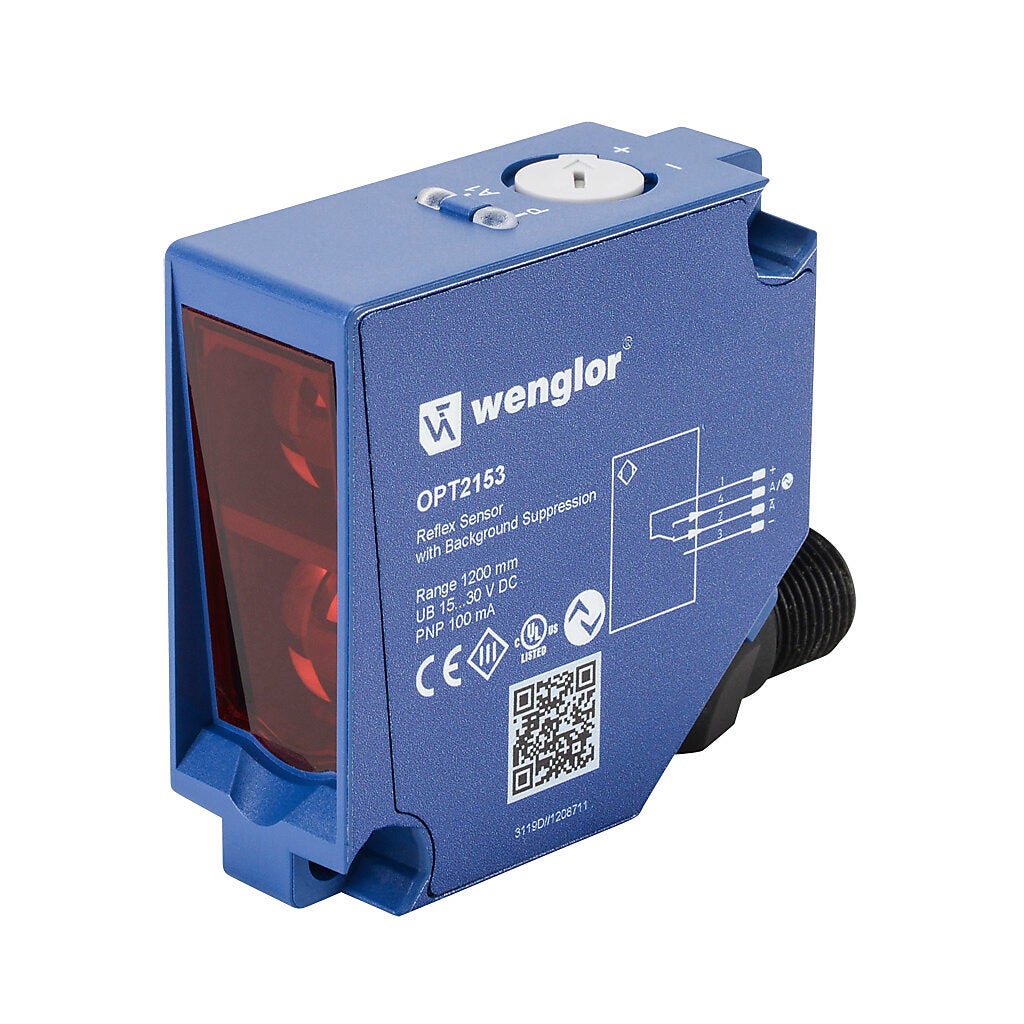

OPT2153 Wenglor Photoelectric Sensor, 0-1200mm Sensing Distance, 500 Hz Switching Frequency, 4-Pin M12 Quick-Disconnect

OPT2153 Wenglor Photoelectric Sensor, 0-1200mm Sensing Distance, 500 Hz Switching Frequency, 4-Pin M12 Quick-Disconnect

Wenglor photoelectric sensor, square, plastic, diffuse with background suppression, 0-1200mm sensing distance, complementary light-on/dark-on, PNP, potentiometer, 500 Hz switching frequency, 4-pin M12 quick-disconnect

OPT2153 Wenglor Photoelectric Sensor, 0-1200mm Sensing Distance, 500 Hz Switching Frequency, 4-Pin M12 Quick-Disconnect

Features and Specifications:

• Brand: Wenglor
• Item: Photoelectric sensor
• Shape: Square
• Housing Size: 50 x 50 x 20mm
• IP Rating: IP67 IP68
• Housing Material: Plastic
• Sensing Method: Diffuse with background suppression
• Operating Voltage: 15-30 VDC
• Number of Wires: 4
• Switching Output: PNP
• Sensing Distance: 0-1200mm
• Sensitivity: Potentiometer
• Operation Mode: Complementary light-on/dark-on
• Switching Frequency: 500 Hz
• Light Emission: Visible red
• IO-Link Compatible: Yes
• Connection: 4-pin M12 quick-disconnect
• Communication Port and Connection Type(s): (1) 4-pin M12 A-coded (IO-Link) port(s)
• Port Protocol(s): IO-Link Class A Device
• Port Speed(s): IO-Link COM2
• IO-Link Version: IO-Link v1.1
• Standard I/O Mode Supported: Yes
• Includes: Mounting hardware
• Additional Information: Purchase cable separately
