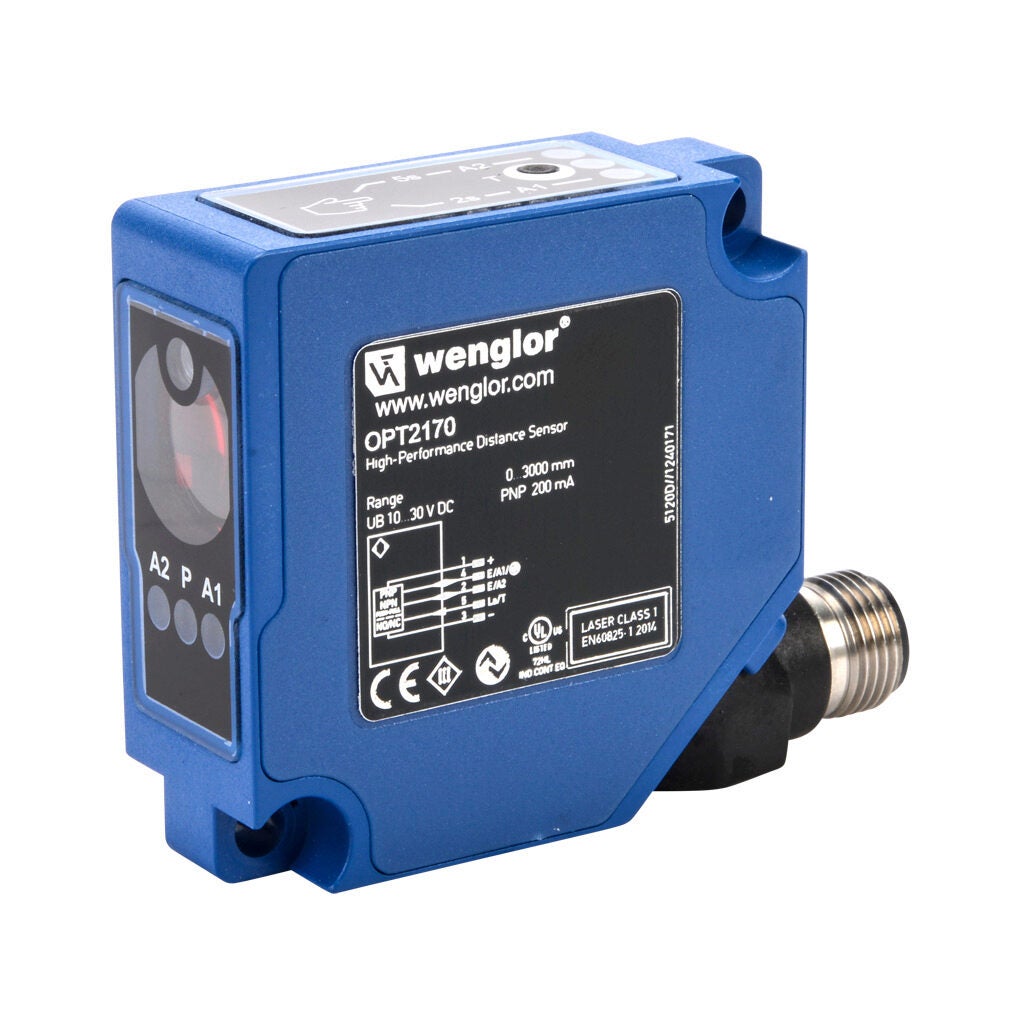

OPT2170 Wenglor Photoelectric Sensor, 0-3m Sensing Distance, PNP, 500 Hz Switching Frequency, 5-pin M12 Quick-Disconnect

OPT2170 Wenglor Photoelectric Sensor, 0-3m Sensing Distance, PNP, 500 Hz Switching Frequency, 5-pin M12 Quick-Disconnect

Wenglor photoelectric sensor, square, plastic, diffuse with background suppression, 0-3m sensing distance, complementary light-on/dark-on, PNP, teach-in button, 500 Hz switching frequency, 5-pin M12 quick-disconnect

OPT2170 Wenglor Photoelectric Sensor, 0-3m Sensing Distance, PNP, 500 Hz Switching Frequency, 5-pin M12 Quick-Disconnect

Features and Specifications:

• Brand: Wenglor
• Item: Photoelectric sensor
• Shape: Square
• Housing Size: 50 x 50 x 20mm
• IP Rating: IP68
• Housing Material: Plastic
• Sensing Method: Diffuse with background suppression
• Sensing Technology: Time of Flight technology
• Operating Voltage: 10-30 VDC
• Switching Output: PNP
• Sensing Distance: 0-3m
• Sensitivity: Teach-in button
• Operation Mode: Complementary light-on/dark-on
• Switching Frequency: 500 Hz
• Light Emission: Class 1 laser
• IO-Link Compatible: Yes
• User Interface: Pushbutton user interface
• Connection: 5-pin M12 quick-disconnect
• Communication Port and Connection Type(s): (1) 5-pin M12 A-coded (IO-Link) port(s)
• Port Protocol(s): IO-Link Class A Device
• Port Speed(s): IO-Link COM2
• IO-Link Version: IO-Link v1.1
• Standard I/O Mode Supported: Yes
• Includes: Mounting hardware
• Additional Information: Purchase cable separately
