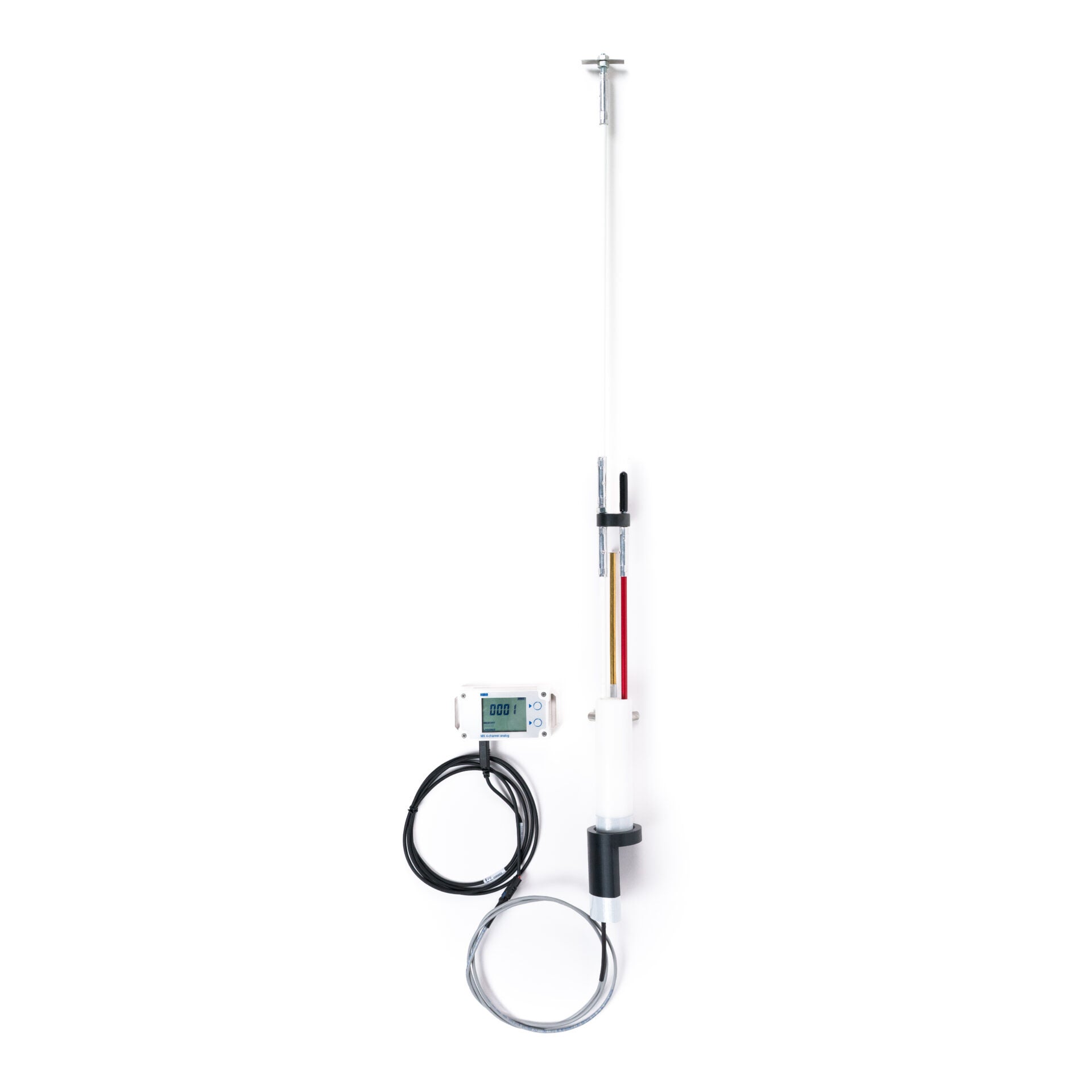

SMI MHL With Adapter

MHL With Adapter

This version offers the same reliable performance as the original MHL, with the added benefit of built-in data logging using the MHL-Adapter. Measurements are automatically recorded and accessible through a mobile app, giving you easy access to historical data. You can also export readings as a CSV file for streamlined reporting and analysis.

MHL With Adapter

Features and Specifications:

MHL Specs:

• Made in America
• Single-point rock movement monitor with a 12″ reflectorized drop flag, visible from great distances
• Thousandths of an inch measurement retrievable at the instrument with the use of the dial gauge or adapter
• Non-corrosive materials
• Designed to install quickly and is easy to use by all
• 1-1/2″ diameter hole minimum
• Unlimited monitoring depth
• User set trips, resettable and adjustable

Bluetooth Data Logger Specs:

• Resolution Accuracy: .001”
• Operating Range: 20° to 70°C (-4° to 158°F)
• Operating Range: mW (0 dBm)
• Radio Power 1: Approximately 30.5 m (100ft) line of-site
• Transmission Range: Bluetooth Low Energy (Bluetooth Smart)
• Wireless Data Standard: 1 second to 18 hours
• Logging Rate: Fixed interval (normal, statistics) or burst
• Memory Modes: Wrap when full or stop when full
• Start Modes: Immediate, push button, date & time, or next interval
• Stop Modes: When Memory full, push button, date & time, or after a set of logging period
• Time Accuracy: ± minute per month at 25°C (77°F)
• Battery Type: Two AAA 1.5 V alkaline batteries, user replaceable
• Battery Life: 1 year, typical with logging interval of 1 minute and Bluetooth Always On enabled; 2 years, typical with logging interval of 1 minute and Bluetooth Always On disabled; and temperatures between 0° and 50°C (32 and 122°F). Faster logging intervals and statistics sampling intervals, burst logging, remaining connected with the app, excessive downloads, and paging may impact battery life.
• Memory: 4 MB (1.9 million measurements, maximum)
• Full Memory Download Time: Approximately 4 to 15 minutes depending on the mobile device; may take longer the
  further the device is away
