ICOM

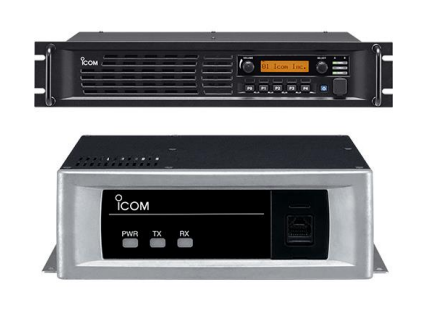

FR5300/FR6300 Series Icom IDAS Repeaters
Price: US $2,501.00
Free same day shipping
Product no: VAR0159
Product info: The FR5300 is a second generation IDAS™ repeater that builds upon the powerful product line with the affordable, low complexity digital simulcast capabilities and a new CPU/FPGA platform. Increase coverage with simulcast by adding repeaters to pair on the same networks.
-
Product long description:
FR5300/FR6300 Series Icom IDAS Repeaters
FEATURES
CW ID included
Automatic battery backup
DB-25 accessory connector
Internal space for duplexer & pre-selector
Fits 2 RF modules into unit
PTT priority setting
Low voltage alert
New CPU/FPGA Platform
RC-FS10 and VEPG4 CompatibleDigital Features:
• IDAS Simulcast (UC-FR5300 & CF-FR5300SC)
• IDAS Trunking-single or multisite (UC-FR5300 board & CFFR5000)
• Receives analog and digital signals on a single channel
• NXDN® Digital Air Interface
• Strongest site search
• Firmware upgrade over IP
• Configuration over IP
• ±0.1 ppm high frequency stability with 1 pps signalSIGNALING
Digital RAN Code decode
5-tone & DTMF Encode/Decode (analog)
CTCSS, DTCS toneACCESSORIES
HM152 Microphones Microphone for low/mid range mobile radios SM26 Desktop microphone with monitor switch for mobile radios -
Product specifications
FR5300/FR6300 Series Icom IDAS Repeaters
SPECIFICATIONS
Frequencies: 136-174, 400-470, 450-512MHz
Output Power: 50W at 50% duty cycle
25W at 100% duty cycle
Channels: 32
Channel Spacing: 6.25 (digital) / 12.5kHz
LCD Display: 16-digit dot matrix
Programmable buttons: 5
Mil Spec: 810G, C, D, E, F
Scan: Normal & priority
Size: 19-inch rack mount, 2U height
Weight: 12.7 lb (approx)
