ICOM

F3400D/F4400D Series Icom VHF UHF Digital Portable

Name: F3400D/F4400D Series Icom VHF UHF Digital Portable
SKU: VAR0153
Availability: InStock

Product short description:

F3400D/F4400D Series Icom VHF UHF Digital Portable SPECIFICATIONS Frequencies: 136-174, 380-470, 450-512MHz Output Power: 5W Channels: 32 channels w/2 zones (F3400D), 1024 channels w/128 zones (F3400DS/DT) Channel Spacing: 12.5 & 6.25kHz Mil Spec: C, D, E, F, G Weight: 12.0oz (w/BP-284) Waterproof Rating: IP68 Versions: With full keypad With simple keypad Without LCD and front […]

Product brochure

Price: Price range: US $971.00 through US $1,034.00

Free same day shipping

Product no: VAR0153

Product info: The F3400D Series radios are Icom's new flagship IDAS product. Dozens of new features and functions are included, all in one new small form factor size. Features like SD Card, USB interface, and Bluetooth appear for the first time in this land mobile product. A brilliant color display allows for easy observation of critical information, from the dimmest of light to the brightest sunshine. Icom is the choice when you want to take your communications to the next level.

Product long description:

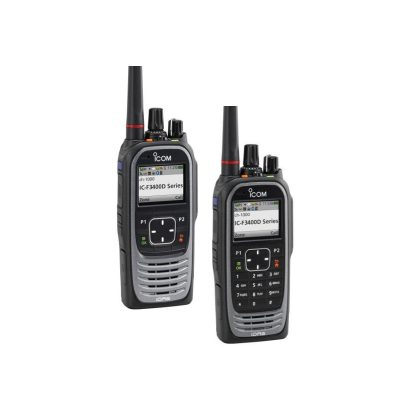

F3400D/F4400D Series Icom VHF UHF Digital Portable

*ANTENNA AND CHARGER SOLD SEPARATELY*

FEATURES
General Features
• Basic LTR® / Conventional / IDAS
• GPS built-in
• Bluetooth™ built-in
• Intuitive user interface
• High-resolution color LCD
• Digital voice recorder – record up to 500 hours with 32GB microSD
card
• Man down, motion detection, stationary detection, lone worker and
power OFF emergency
• AquaQuake™
• Audio equalizer

Digital Features
• IDAS™ conventional
• IDAS single-site and multi-site Type D trunking (requires license)
• Voting mode scanning
• NXDN® Digital Air Interface
• AMBE+2™ VOCODER
• Individual & group selective call
• Strongest site search
• Over-the-Air Programming (requires software & license)

COMES WITH
Battery (BP-284)
Belt clip (MB-133)
Antenna & charger purchased separately
Owner’s manual

ANALOG SIGNALING
2-tone, 5-tone, CTCSS and DTCS built-in
DTMF autodial and DTMF decode
MDC1200 compatible

ENCRYPTION
AES/DES UT-134
Over-the-Air Rekeying (requires CSOTAR1
software)

ACCESSORIES

FAS82U	Antennas	430-480MHz antenna for F4400
FAS82US		450-490MHz stubby antenna for F4400
FAS82V		148-162MHz antenna
FAS82VS		148-162MHz stubby antenna
FAS83U		470-520MHz antenna for F4400
FAS83V		160-174MHz antenna for F3400
BP284	Batteries	Li-ion 7.4V 3210mAh (typical capacity), 3070mAh (minimum value)
MB133	Belt Clips	Alligator type belt clip
MB136		Swivel belt clip for F1000/F3400/F7010/F52D/M85 series
MB96N		Swivel belt hanger to use with belt clip
LCF1035SW	Carrying Cases	Leather case with swivel belt loop and D-ring; display cutout for the F3400DS & F7010S
LCF1036SW		Leather case with swivel belt loop and D-ring; display & full keypad cutout for the F3400DT & F7010T
NCF1035C		Nylon case with metal clip with display cutout; F3400DS/F7010S
NCF1036C		Nylon case with metal clip with full keypad cutout; F3400DT/F7010T
BC214-1	Chargers	Six unit charger for radios with the BP284/BP290/BP303 battery (AD132N cup); includes AC adapter with US plug
BC219N	Chargers	Rapid charger for radios with the BP283/BP284/BP294; 100-240V with a US style plug
HM184H	Microphones	14-pin loud waterproof speaker mic (no accessory jack)
HM222H	Microphones	IP68 waterproof speaker microphone w/3.5mm accessory jack (14-pin connector)

Product specifications

F3400D/F4400D Series Icom VHF UHF Digital Portable

SPECIFICATIONS
Frequencies: 136-174, 380-470, 450-512MHz
Output Power: 5W
Channels: 32 channels w/2 zones (F3400D),
1024 channels w/128 zones
(F3400DS/DT)
Channel Spacing: 12.5 & 6.25kHz
Mil Spec: C, D, E, F, G
Weight: 12.0oz (w/BP-284)
Waterproof Rating: IP68
Versions: With full keypad
With simple keypad
Without LCD and front keypad
