ICOM

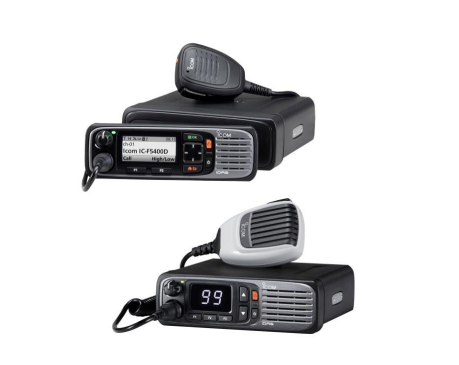

F5400D/F6400D Series Icom VHF UHF Digital Mobile

Name: F5400D/F6400D Series Icom VHF UHF Digital Mobile
SKU: VAR0157
Availability: InStock

Product short description:

F5400D/F6400D Series Icom VHF UHF Digital Mobile SPECIFICATIONS Frequencies: 136-174, 380-470, 450- 512MHz Output Power: 50W (VHF), 45W (UHF) Channels: 1024 channels w/128 zones Channel Spacing: 12.5kHz, 6.25kHz LCD Display: High-resolution color with icons and characters Programmable Keys: 7 (D); 5 (DS) Mil Spec: C, D, E, F, G Weight: 3.3lb Waterproof Rating: IP55 Versions: […]

Product brochure

Price: US $1,132.00

Free same day shipping

Product no: VAR0157

Product info: The F5400D Series is Icom's new flagship IDAS radios. Dozens of new features and functions are included, all in one new small form factor size. Features like SD Card, USB interface, and Bluetooth appear for the first time in this land mobile product. A brilliant color display allows for easy observation of critical information, from the dimmest of light to the brightest sunshine. Icom is the choice when you want to take your communications to the next level.

Product long description:

F5400D/F6400D Series Icom VHF UHF Digital Mobile

FEATURES
General Features
• Basic LTR® / Conventional / IDAS
• GPS built-in
• Bluetooth™ built-in
• Intuitive user interface
• High-resolution color LCD
• Digital voice recorder – record up to 500 hours with 32GB microSD
card
• Safety features: emergency button, lone woker function, and power
OFF emergency function
• AquaQuake™
• Audio equalizer
• D-Sub 25-pin ACC connector
• 20W audio amplifier for connecting with external public address
system

Digital Features:
• IDAS™ conventional
• IDAS single-site and multi-site Type D trunking (requires license)
• Voting mode scanning
• NXDN® Digital Air Interface
• AMBE+2™ VOCODER
• Individual & group selective call
• Strongest site search
• Over-the-Air Programming (requires software & license)

COMES WITH
Hand microphone (HM-220)
Mounting bracket kit
DC power cable
Microphone hanger
Owner’s manual

ANALOG SIGNALING
2-tone, 5-tone, CTCSS and DTCS built-in
DTMF autodial and DTMF decode
MDC1200 compatible

ENCRYPTION
AES/DES UT-134
Over-the-Air Rekeying (requires CSOTRAR1 software)

ACCESSORIES

UX241	Antennas	GPS antenna
SP30	External Speakers	20W large external speaker
SP35	External Speakers	5W external speaker with 3.5mm speaker jack and 2m cable
HM220	Microphones	Heavy duty microphone (IP54) for the F5400 series
HM220T		Heavy duty microphone with DTMF keypad (IP54) for the F5400 series
SM29		Desktop microphone for F5400 series
CONTROL STATION ASSEMBLE	Power Supplies	Install mobile into power supply and cabinet to make control station
IAPS12	Power Supplies	Power supply with cover for control station (120VAC; 20A)

Product specifications

F5400D/F6400D Series Icom VHF UHF Digital Mobile

SPECIFICATIONS
Frequencies: 136-174, 380-470, 450-
512MHz
Output Power: 50W (VHF), 45W (UHF)
Channels: 1024 channels w/128 zones
Channel Spacing: 12.5kHz, 6.25kHz
LCD Display: High-resolution color with icons
and characters
Programmable Keys: 7 (D); 5 (DS)
Mil Spec: C, D, E, F, G
Weight: 3.3lb
Waterproof Rating: IP55
Versions: With full display
With numeric number only
