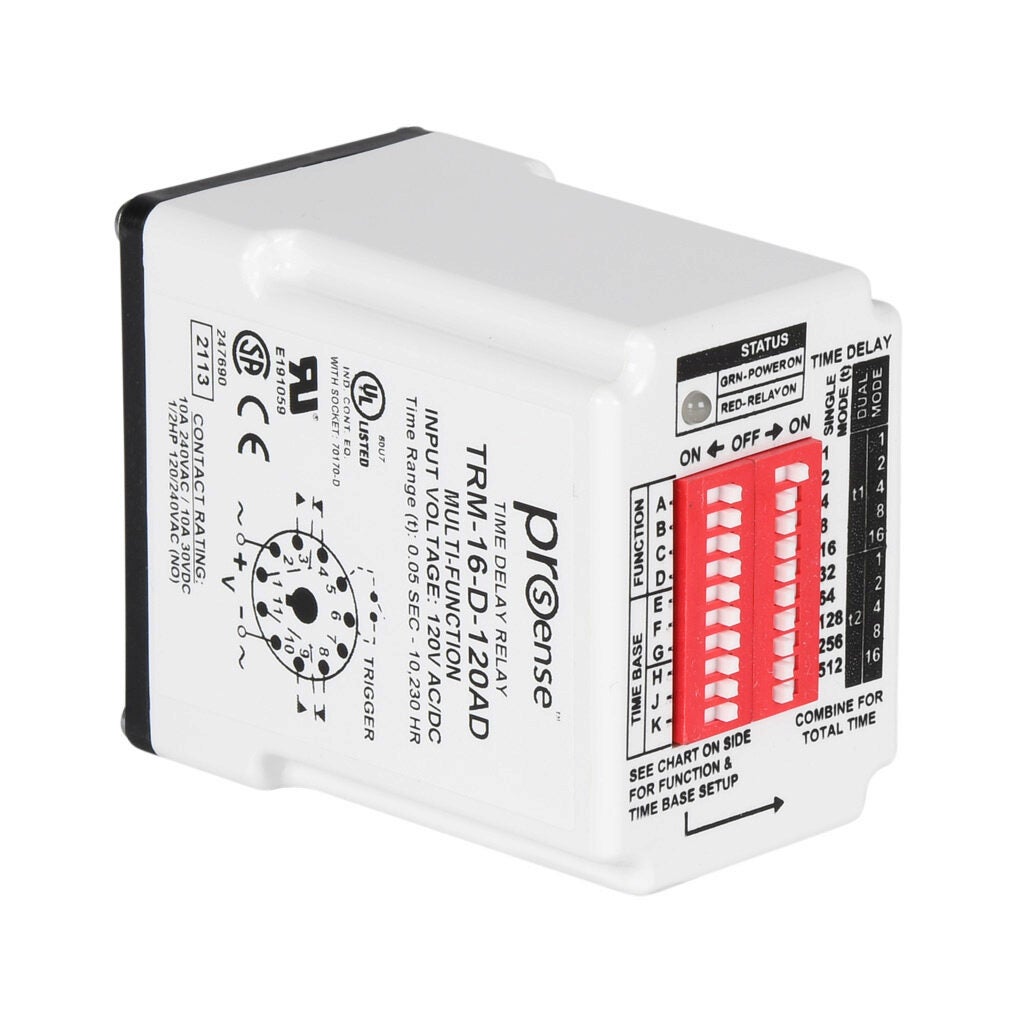

TRM-16-D-120AD ProSense Multi-Mode Relay Timer

TRM-16-D-120AD ProSense Multi-Mode Relay Timer

0.05 seconds to 10,230 hours selectable timing range, 120 VAC/VDC operating voltage, 10A contact rating, (1) DPDT timed relay output(s), socket mount, 11-pin. Requires Macromatic 70170-D relay socket.

TRM-16-D-120AD ProSense Multi-Mode Relay Timer

Features and Specifications:

• Brand: ProSense
• Item: Relay timer
• Timer Type: Multi-mode
• Indicator: LED
• Timing Range: 0.05 seconds to 10,230 hours selectable
• Operating Voltage: 120 VAC/VDC
• Timer Output Type(s): (1) DPDT timed relay
• Timer Function(s):
  • • On-delay
    • Triggered on-delay
    • Off-delay
    • On/Off delay
    • On-interval
    • Flasher (single-shot)
    • On-flasher
    • On-delay/flasher
    • Off-flasher
    • Watchdog
    • Single-shot
    • Falling edge (single-shot)
    • On-cycle
    • Off-cycle
    • Delayed interval
    • Triggered delayed interval
• Contact Rating: 10A
• Mounting: Socket
• Connector Type: 11-pin
• Requires: Macromatic 70170-D relay socket
