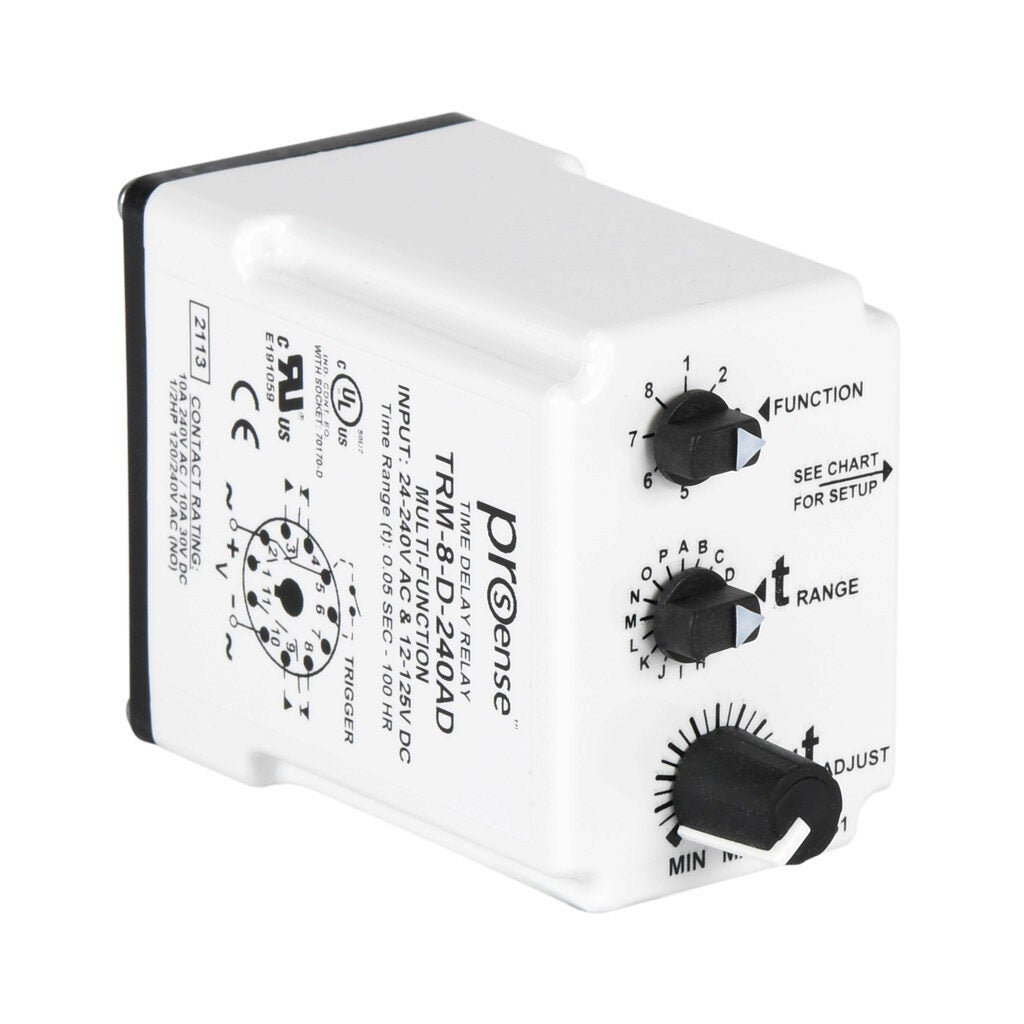

TRM-8-D-240AD ProSense Multi-Mode Relay Timer

TRM-8-D-240AD ProSense Multi-Mode Relay Timer

0.05 seconds to 100 hours selectable timing range, 24-240 VAC and 12-125 VDC operating voltage, 10A contact rating, (1) DPDT timed relay output(s), socket mount, 11-pin. Requires Macromatic 70170-D relay socket.

TRM-8-D-240AD ProSense Multi-Mode Relay Timer

Features and Specifications:

• Brand: ProSense
• Item: Relay timer
• Timer Type: Multi-mode
• Timing Range: 0.05 seconds to 100 hours selectable
• Operating Voltage: 24-240 VAC and 12-125 VDC
• Timer Output Type(s): (1) DPDT timed relay
• Timer Function(s):
  • • on-delay
    • triggered on-delay
    • off-delay
    • on-interval
    • flasher
    • watchdog
    • single-shot
    • falling edge (single-shot)
• Contact Rating: 10A
• Mounting: Socket
• Connector Type: 11-pin
• Requires: Macromatic 70170-D relay socket
